In the fast-paced world of electric bikes (ebikes), performance goes beyond just speed; it's about endurance and reliability too. A key player in this performance is your ebike battery. Many riders overlook the impact of battery capacity and current output on their ebike systems.
So, can a high current battery really enhance your ebike system?
The simple answer is YES.
While it may not increase your top speed, it will allow you to maintain that speed for longer periods. In this post, we'll explore why a high current battery is a crucial upgrade for your ebike, highlighting benefits like cooler operation, reduced voltage sag, and longer battery life.
Understanding the Basics of Current Output
Let’s break down what a high current battery is. Simply put, it's a battery that can deliver a higher number of amps current than your ebike's motor and controller require. For example, if you have an 80 amp CYC X12 controller, a battery rated for 180 amps can provide over double the required current.
Why does this matter?
A battery doesn't push current; rather, the motor’s controller pulls the necessary current from the battery based on demand. Even with a battery capable of delivering 1,000,000 amps, your ebike will only draw what it needs to function efficiently.
Benefits of a High Current Battery
1. Less Stress on Your Battery
A high current battery reduces the stress on your system. In the previous example, since the battery only needs to provide 44% of its rated capacity (80 amps from 180 amps), it operates more efficiently. Lower demand prevents overheating, ensuring better performance during rides and extending battery life. For instance, if conventional batteries typically last 500 cycles, a high current battery may last up to 700-1,000 cycles and even much longer with Molicel's new P50B cell, giving you a noticeable return on investment.
2. Reduced Voltage Sag
High current batteries help mitigate voltage sag, a common issue when there's a sudden demand for power, like climbing steep hills or quick accelerations. For example, many riders may experience a voltage drop of 10-20% using standard batteries in these scenarios. In contrast, a high current battery helps maintain stable voltage levels, ensuring a smoother ride and more responsive throttle.
3. Enhanced Performance on Steeper Terrain
Climbing hills can challenge both your motor and battery. A high current battery empowers your ebike to tackle these inclines without compromising performance. Riders frequently venturing into mountainous areas or enjoying off-road terrains will find that a stable current supply translates into a better riding experience. In tests, ebikes with high current batteries can climb inclines of up to 20% more effectively than those with standard batteries.
4. Increased Cycle Life
Investing in a high current battery can extend its overall cycle life. Batteries naturally wear down, but operating at lower current levels reduces stress on individual cells. This connection to both temperature management and voltage sag is crucial. A high current battery may operate well for hundreds of more cycles compared to its lower current counterparts, giving you more value for your money.
Should You Make the Switch?
Now that you're aware of the benefits, you may be wondering if it's time to invest in a high current battery for your ebike. Here are a few things to consider:
Current Setup: Assess your existing battery and controller. Are they handling your riding demands? If you're experiencing heat or voltage sag issues, it might be worth upgrading.
Riding Style: Think about your usual riding situations. Do you often encounter steep grades or ride in hot conditions? If the answer is yes, you will likely appreciate the advantages of a high current battery.
Budget: While high current batteries can be pricier, their longevity and reduced frequency of replacements often justify the initial cost, making them a wise investment.
Embrace the Transformation
In summary, upgrading to a high current battery can significantly boost your ebike's performance. While it may not increase your top speed, it allows you to maintain that speed longer without overheating or experiencing voltage drops.
With benefits including cooler operation, reduced voltage sag, and increased longevity, a high current battery is a smart choice for both casual and serious riders.
Are you ready to unlock your ebike's true potential? Consider investing in a high current battery. You will ride more confidently, knowing your system is ready for any challenge that lies ahead. Happy biking!
The Hidden Dangers of Voltage Sag: Protecting Your eBike Battery and Ride
Extreme voltage sag is more than just an inconvenience; it's detrimental to your battery and your ride. When your battery's voltage sags, the cells are exerting significant effort to deliver the required current. This internal resistance in cells generates heat, which is detrimental to your battery.
Overheating batteries leads to a shortened lifespan and potential irreversible damage.
Voltage sag can also result in unwarranted power cutoffs during the mid and lower voltage phases of the battery cycle, causing unexpected ebike shutdowns that necessitate restarting.
Here's a quick example:
A 52v battery operates between 58.8v and approximately 42v. At 41-42 volts, the BMS (battery management system) will cut off the current, as it is designed to prevent discharges below the safe voltage threshold.
Imagine your battery experiences a voltage sag of 7-8v. You're mid-ride, and your battery shows 50v (ample range left, right?). You start ascending a steep hill, throttle hard, and suddenly your motor shuts off. Worst-case scenarios flood your mind as you inspect your bike.
Everything seems fine, so you restart your display, and the bike powers up as if nothing happened. Confused, you continue riding. Perhaps you ease off the throttle, or maybe you don't. Your motor cuts out a few more times until you reach home and start searching for answers online.
The most common explanation for this scenario is that at ~50v, voltage sag temporarily drops the battery's voltage to or below the BMS's cutoff. At this low level, the BMS halts all output. The voltage starts to rebound as soon as there is no load on the battery, allowing you to restart your display. These cutouts often occur at the worst moments, like merging into traffic or climbing steep hills, when your motor demands more current.
All batteries experience some voltage sag, but minimizing it enhances your riding experience and extends your battery's life by reducing strain.
Cell Connections in High-Current Batteries
Now, let's discuss cell connections in high-current batteries. Current flows through connections between cells. Most batteries use spot-welded connections with nickel strips. However, some inferior batteries use nickel-plated steel strips, which are poor conductors. While nickel is decent, copper is about 4.5 times more conductive.
That's why we use 0.5mm Copper Bus Bars, spot-welded to each cell. For comparison, most battery packs use 0.15mm-0.2mm nickel strips. To match our bus bars' conductivity, you'd need nickel over 2mm thick, akin to a pencil lead's width—bulky, heavy, and challenging to weld onto a cell.
This matters because improper cell connections increase resistance (heat), exacerbating voltage sag and potentially causing severe issues.

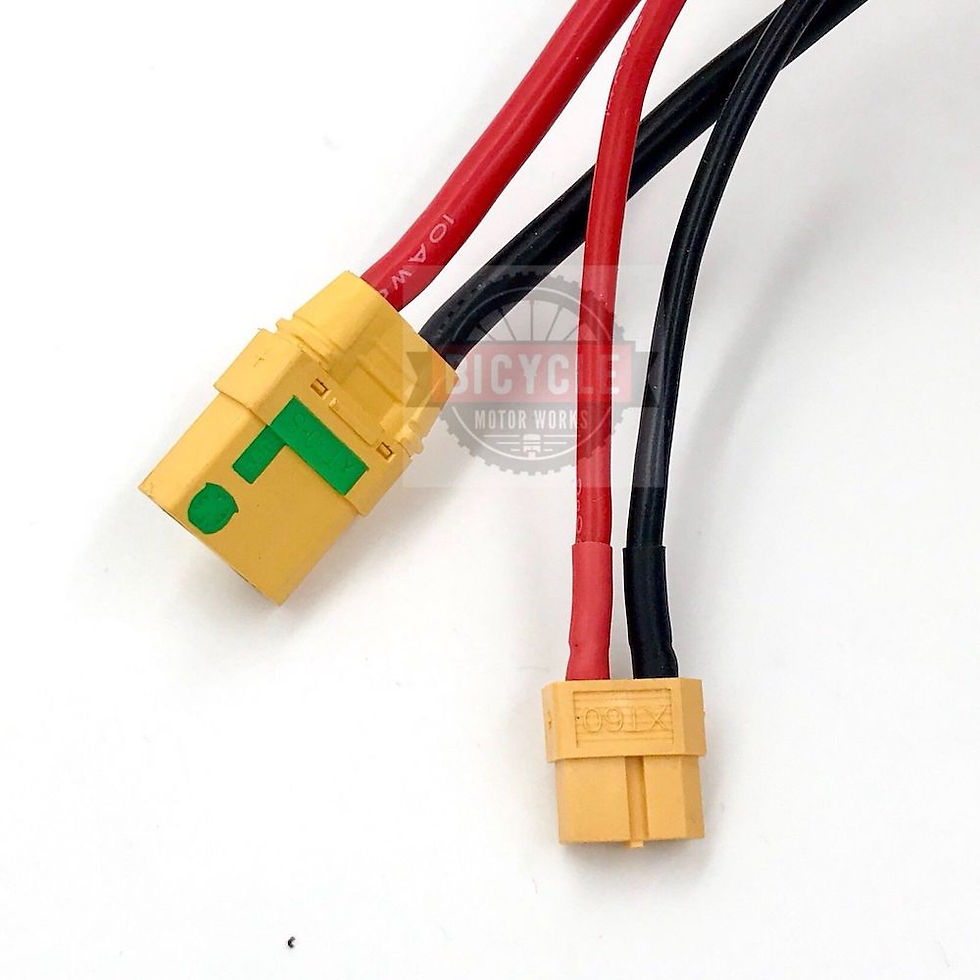

Wiring
Now, onto wiring. We use 10-gauge wires for our high-current batteries. Thicker than 12-gauge, this larger wire reduces resistance, keeping the wires cooler and more efficient.
Creating the best high-current batteries involves many factors, and we wanted to share why and how we do it. If you have a high-performance ebike, a high-current battery is essential. In fact, any ebike benefits significantly from a high-current battery.
